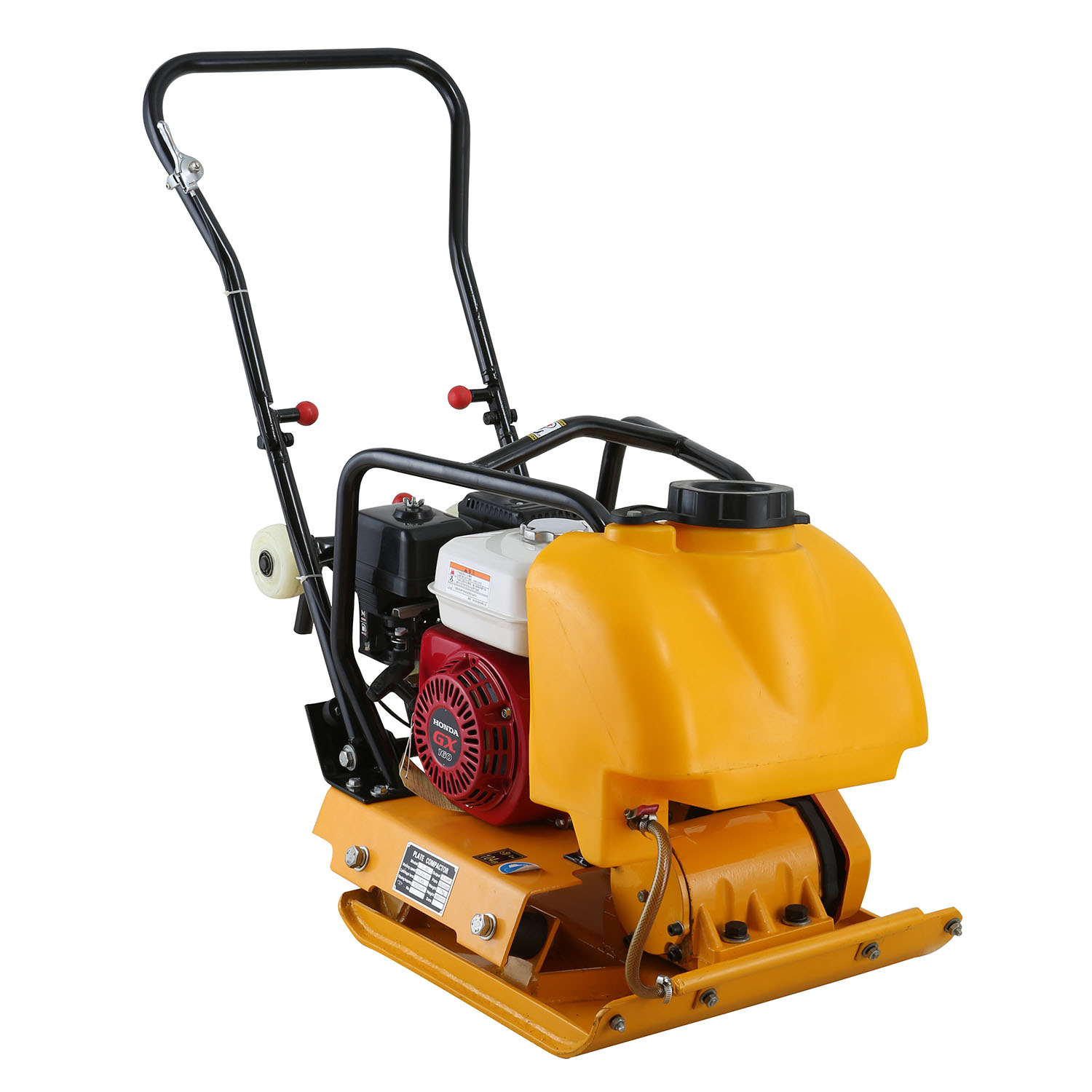

| Plate compactor | |||||
| Model | C-80T | C-100T | |||
| Engine | Petrol,Honda GX160 | Petrol, LONCIN GF200 | Robin EY20 | Petrol,Honda GX160 | Petrol, LONCIN GF200 |
| Engine | 5.5HP | 6.5HP | 5.0HP | 5.5HP | 6.5HP |
| Type of combustion | Air-cooled, single cylinder, 4-stroke | Air-cooled, single cylinder, 4-stroke | |||
| Centrifugal force | 13.0KN | 20.0KN | |||
| Compaction depth | 30cm | 40cm | |||
| Size of base plate | L 500 × W 480mm | L 620 × W 480mm | |||
| Vibrating Frequency | 5500 vpm | 5500 vpm | |||
| Travel Speed | 40 cm/m | 40 cm/m | |||
| Efficiency | 620m2/hr | 660m2/hr | |||
| G.W./N.W. | 90kgs /80kgs | 110/100kgs | |||
| Shipping size | 830*520*790mm | 850*520*790mm | |||
Ideal for all general applications-curbs,gutters,around tanks,forms,columns,footings,landscaping,paving blocks,drainage ditches and light to medium road repair work . with optional rubber mat and water sprinkler system for Hot and cold asphalt
Follow up customers' feedback after receive the products, andt try our best to solve and improve the quality and service over 90% of products are exported Focusing on Exclusive Agent and take our customers grow up together
Optional accessories 1.Foldable handle for easy transportation and stock 2. Trolley wheel provides ease with which the plate compactor can be transported 3.Rubber mat for brick paving compaction is available 4. Cast Iron plate or 65MN steel plate 5. Cast iron vibratory unit or aluminium vibratory unit
