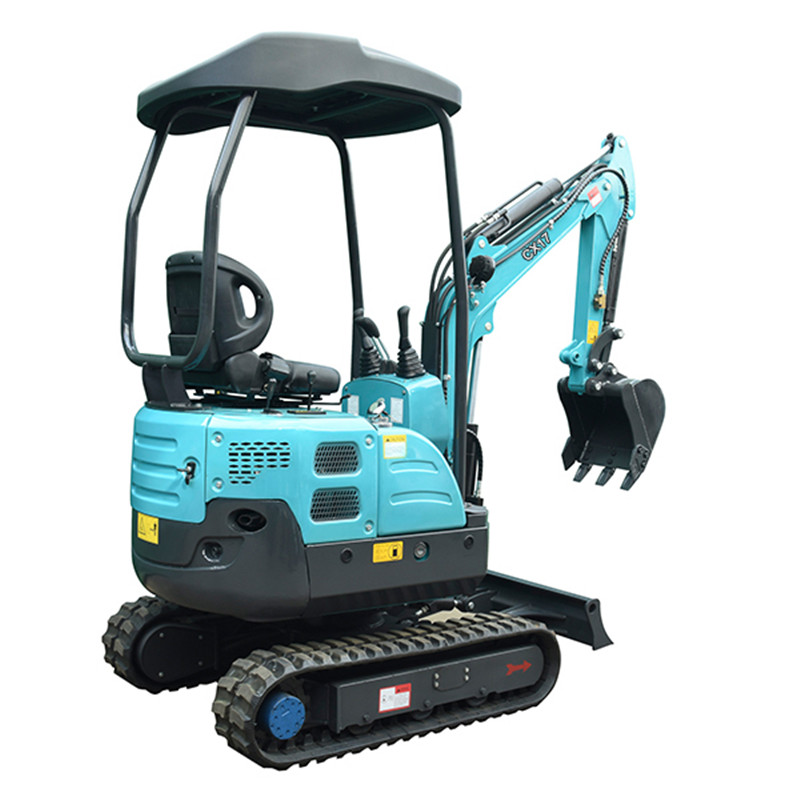

1680KG with 0.045CBM Hydraulic Mini Excavator

Products Details

Engine Type, Power, Emission, Certificate: Original Yanmar 3-cylinder 3NTV74  11.2kw Diesel engine with EPA approved ,the warranty of the world Special Certificate Of Operation Console: Comforatbel operation table design like a car indiction dash board,first desgn in China Tubing Brand: The oil pipe is from a Germany famous brand 'Continetal',which is in high quality. Special Evidence: Hydraulic control system with 8 routes valve,the factory as Yanmar ,XCMG ,SANY Travel motors and Center connector by USA Eaton Brand Quality Control: “Quality is our life”  ,We are always focused on quality controlling and parts choices from the very beginning to the very end. we have CE Certification for the machine and EPA Certification for the Diesel engine
Machine parameters Dimensions
Model CX17 Overall Length 3290mm
Operating Weight 1650 KGS Overall Width 1054mm
Bucket Capacity 0.045 m³ Overall Height 2400mm
Rated Power 11.2 KW/2200rpm Track Length 1670mm
Max.Hydraulic System Pressure 16Mpa Track Width 1055mm
Max Walking Speed 1.5km/h Platform Ground Clearance 460mm
Max  Digging Force 10.5 KN Platform Ground Clearance 460mm
Platform Rotary Speed 11 rmp Platform Ground Clearance 460mm
Working range Machine configure
Max. Digging Height 3275mm Engine  Model YANMAR 3TNV74
Max Digging Depth 2150mm Rotation Motor American Eaton (made-in Japan)
Max. Digging Radius 3560mm Walking Motor American Eaton (made-in Japan)
Max Dumping Height 2310mm Hydraulic Hose Germany  Contitech
Radius of Tail Gyration 740mm PUMP USA
Appliciation for small works, small projects, in garden,orchard, farmland,vegetable greenhouse, digging trench and municipal works .with  quick hitch can add the accessories tools like: Auger,rake,ripper,wood grab,break hammer and 200/300/500/1000mm bucket , which could be suit for many different area. 250 hours working time quality guarantee,Provide video service after-sales Quality products that have been exported to over 50 countries With 25 years manufacturing experience and more than 15 years export experience and specializes in the research and manufacture of Building machinery
